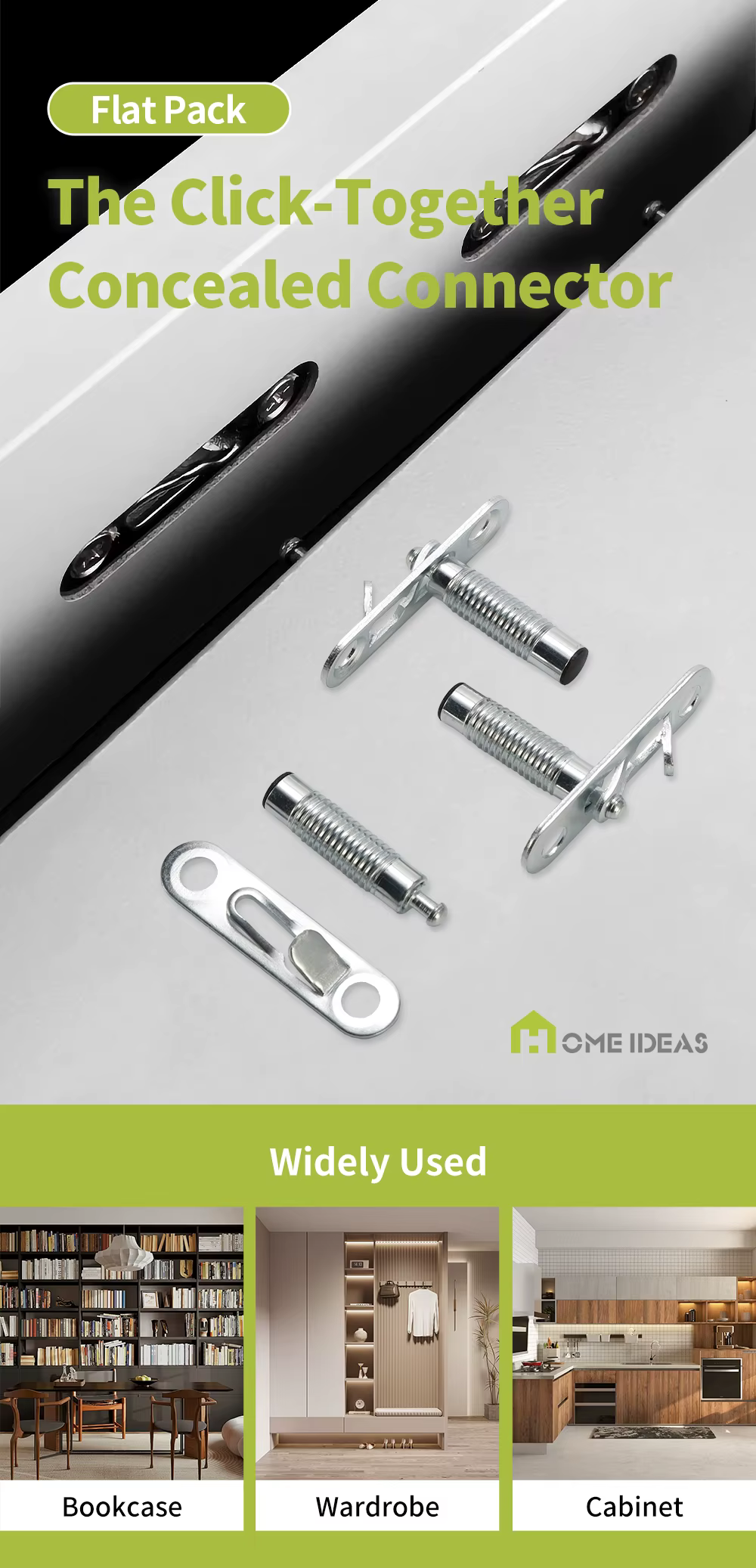

Concealed Surface-Mount Panel Connector — Silver-colored two-part connector sets shown with elongated recessed mounting plates, spring-loaded cylindrical pins and separate fixing screws. Final component geometry, panel and hole interfaces, mating parts, material, finish, quantity and packaging require confirmation.
Product Overview
| Photographed Configuration | Silver-colored two-part connector sets shown with elongated recessed mounting plates, spring-loaded cylindrical pins and separate fixing screws. |
|---|---|
| Purchasing Position | Furniture connector or support assembly requiring panel, hole, mating-component and installation confirmation. |
| Order Boundary | Photographed colors, dimensions and quantities do not define the production order. |
| Quotation Basis | Approved drawing or sample, mating part or panel, installation conditions, quantity, packaging and acceptance criteria. |
Specifications & Custom Capability
Current Product Configuration
| Product Type | Concealed Surface-Mount Panel Connector |
|---|---|
| Current Product Configuration | Silver-colored two-part connector sets shown with elongated recessed mounting plates, spring-loaded cylindrical pins and separate fixing screws. |
| Primary Form | Concealed panel connector intended to mount into prepared shallow recesses and join two furniture panels through a retained sliding pin. |

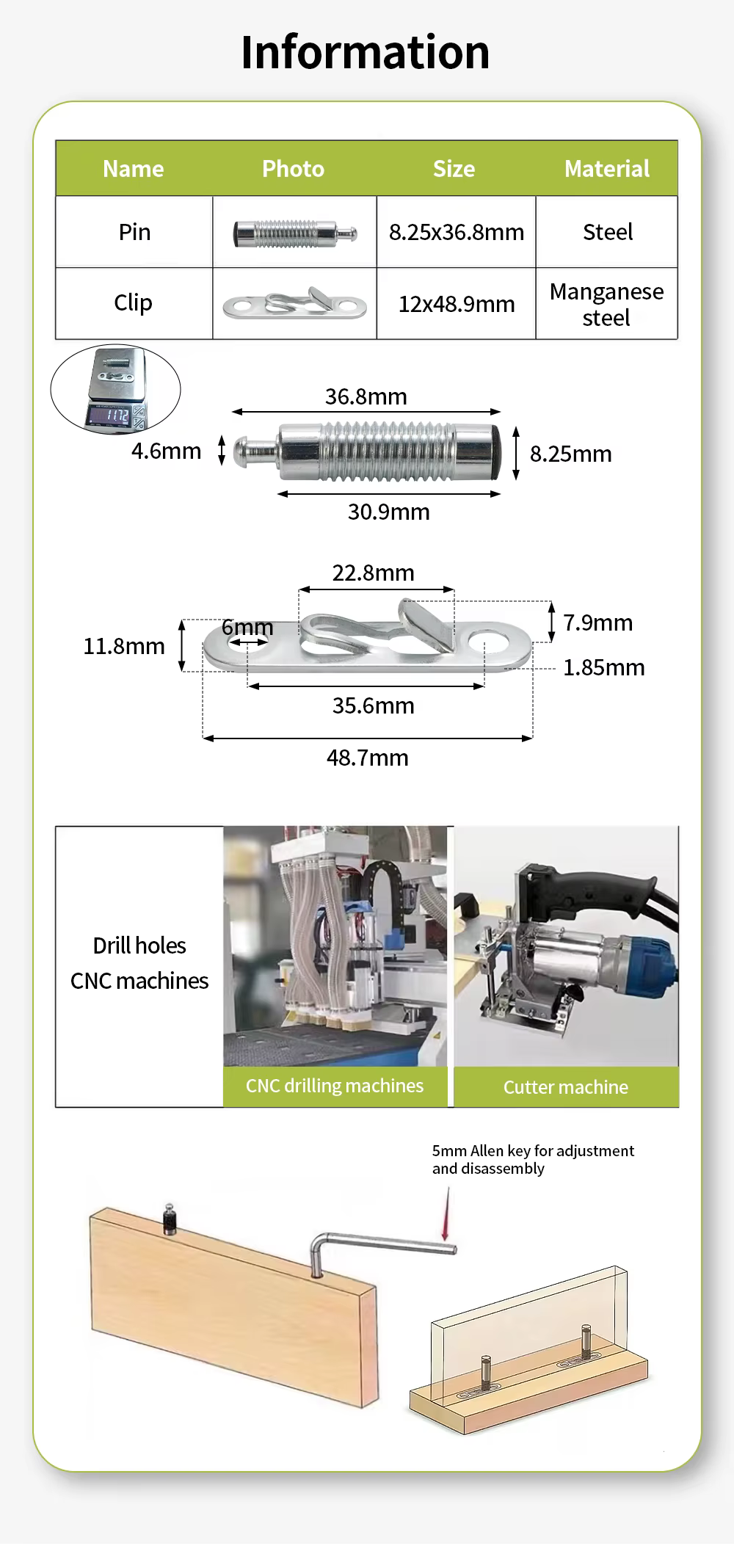

| Head / Interface | Confirm plate length, width and thickness, slot and countersinks, pin diameter and travel, spring behavior, receiving feature, recess and panel clearance. |
| Thread / Mating Part | Confirm fixing-screw geometry and pilot holes separately from the spring-loaded pin, receiving interface and retained travel. |
| Current Appearance | Bright silver-colored plates, pins and screws are shown; confirm base materials, finish system, spring material and approved sample. |
| Material | Confirm according to drawing, sample or purchase specification. |
| Installation | Confirm both panel materials and thicknesses, recesses, fixing holes, connector alignment, insertion path, retained travel, service direction and buyer-specified joint test. |
| Dimensions & Tolerances | Confirm according to drawing, sample or purchase specification. |
Custom Manufacturing & Order Review
| Made-to-Drawing | Available for review with component drawings, panel-hole specification, joint section and mating-component details. |
|---|---|
| Made-to-Sample | Available for comparison with representative connectors, panels, mating parts and approved finish samples. |
| Component Geometry | Cam, pin, support body, sleeve, connector head, shank, shoulder and panel interfaces can be reviewed against the approved furniture joint. |
| Threaded Component Range | Threaded screws or dowels from M1 to M12 can be reviewed only where compatible with the confirmed furniture assembly, material, geometry and installation method. |
| Threaded Component Length | Threaded screws or dowels from 3 mm to 200 mm can be reviewed only where compatible with the confirmed panel, joint, engagement and manufacturing route. |
| Finish Options | Zinc plating, Ruspert coating, spray painting, electrophoretic coating, blackening, gold plating, silver plating and copper plating can be reviewed only where compatible with the confirmed base material, geometry, service environment and acceptance requirement. |
| Packaging & Private Label | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after part identity, quantity, protection, labels and artwork are approved. |
| MOQ | 10,000 pcs per confirmed specification |
| Samples | Request a representative sample with the proposed components, panels, holes, finish and packaging specification. |
Applications
| Concealed cabinet panel joints | Coordinate plate recesses and pin alignment with the approved panels. |
|---|---|
| Removable furniture panels | Confirm insertion path, retained travel and release access. |
| Replacement hidden connectors | Compare plate, pin and spring interfaces with approved samples. |
| OEM connector sets | Control plate, pin and screw ratios, labels and protection. |
Buyer Guide
| Which panel machining data are required? | Provide both recesses, panel thicknesses, fixing holes, alignment datums and tolerances. |
|---|---|
| How is pin travel approved? | Confirm spring behavior, insertion path, capture and release with representative panels. |
| Can a holding-force claim be inferred? | No. State the complete joint and buyer-specified test method and acceptance criteria. |
| Are the fixing screws part of the same specification? | List them separately with head, drive, thread, point, pilot hole and quantity. |
Quality Control
| Plate and recess geometry | Inspect outline, thickness, slot, countersinks, edges and burrs. |
|---|---|
| Pin and spring action | Check diameter, travel, return, retention and visible defects. |
| Panel joint trial | Verify recess fit, alignment, insertion, capture, release and buyer-specified test. |
| Finish and pack audit | Confirm complete set, count, labels and surface protection. |
Packaging & Customization
| Packaging Format | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after part identity, quantity, protection, labels and artwork are approved. |
|---|---|
| Identification | Use approved item codes, quantities, labels, barcodes and carton marks. |
| Component Protection | Prevent mixed parts, movement and visible-surface damage through the confirmed pack design. |
| Private Label | Submit approved artwork, language, barcode data and legal marking requirements before production. |
Frequently Asked Questions
| Is the order limited to the photographed furniture component? | No. The gallery records the current photographed configuration. Final component geometry, panel and hole interfaces, mating parts, material, finish, quantity and packaging require an approved drawing or sample. |
|---|---|
| Can the furniture connector or support geometry be customized? | Component geometry can be reviewed against the confirmed panel, hole layout, mating parts and installation method. M1 to M12 threads and 3 mm to 200 mm lengths apply only to compatible screw or dowel components after technical review. |
| Which panel machining data are required? | Provide both recesses, panel thicknesses, fixing holes, alignment datums and tolerances. |
| Which finishes can be reviewed for metallic components? | Zinc plating, Ruspert coating, spray painting, electrophoretic coating, blackening, gold plating, silver plating and copper plating can be reviewed only where compatible with the confirmed base material, geometry, service environment and acceptance requirement. |
| Can the package and label be customized? | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after part identity, quantity, protection, labels and artwork are approved. |
| What is required for quotation? | Send the component and panel drawings or samples, hole specification, mating parts, installation method, material and finish requirement, quantity and packaging artwork. MOQ starts at 10,000 pcs per confirmed specification. |
Need a Custom Quote?
Send a drawing or sample and the confirmed assembly requirements. JH Fix will review manufacturing compatibility, sample scope and quotation details.
| RFQ 1 | Connector drawing or approved sample |
|---|---|
| RFQ 2 | Both panel materials, thicknesses and recesses |
| RFQ 3 | Fixing holes and separate screw specification |
| RFQ 4 | Pin travel, insertion and release sequence |
| RFQ 5 | Materials, finish, spring and test requirement |
| RFQ 6 | Quantity, component ratio, labels and packaging |
MOQ: 10,000 pcs per confirmed specification
