M5 x 14mm Black Wide Truss Head Machine Screw
This M5 x 14mm black truss head machine screw has a broad low head, cross drive, fully threaded shank and blunt end for a confirmed receiving thread.
- M5 x 14mm stated in product information
- Broad low truss / flange-style head
- Cross drive
- Fully threaded shank and blunt end shown
- MOQ starts at 10,000 pcs per confirmed specification
Quick contact: WhatsApp · sharon@hkhomeideas.com
Product Overview
This M5 x 14mm black truss head machine screw is shown with a broad low bearing head, cross drive, fully threaded shank and blunt end. The geometry is suitable for review with a nut, threaded insert, tapped hole or cage nut; pointed self-tapping performance is not assumed.
For a B2B quotation, provide M5 pitch, 14mm length confirmation, receiving thread, joint stack, required engagement, head clearance, material, black finish, quantity and packaging. Verify the M5 x 14mm black truss head machine screw in the actual rack or appliance panel before bulk approval.
Procurement note: Specify M5 pitch, 14mm length datum, receiving nut or threaded feature, joint stack, head clearance, black finish, quantity and packaging.
Technical Specifications
| Product Type | M5 x 14mm black wide truss head machine screw |
|---|---|
| Material | Confirm according to drawing, sample or purchase specification |
| Finish / Surface Treatment | Black appearance shown; confirm coating system, color and service environment |
| Diameter | M5 stated in product information |
| Length | 14mm stated in product information; confirm datum and tolerance |
| Head Type | Broad low truss / flange-style head shown |
| Drive Type | Cross drive |
| Thread Type | Fully threaded shank shown; pitch can be customized to customer requirement |
| Point Type | Blunt end shown |
| Standard | Confirm applicable dimensional standard and edition; no certification claim is assumed |
| Application | Rack panels, cage nuts, appliance covers, threaded inserts and equipment brackets |
| Packaging | Bulk cartons, counted packs or matched black hardware kits |
| MOQ | 10,000 pcs per confirmed specification |
| Sample Availability | Discuss after pitch, receiving thread and finish are confirmed |
| OEM / ODM | Length, pitch, head, drive, material, black finish and packaging can be customized |
Dimensions or performance requirements that vary by order should be confirmed according to the approved drawing, sample or purchase specification.
Applications
Rack panels with cage nuts
Match M5 pitch and cage-nut thread, then check panel stack and head clearance.
Appliance access covers
Verify insert or tapped-hole depth, finish compatibility, driver access and service cycles.
Equipment brackets
Check slot width, bearing area, joint stack, engagement and rear clearance.
Black hardware kits
Approve color, mating component, quantity, label and carton identification.
Buyer Guide: How to Choose
Is M5 pitch automatically defined?
No. State the required pitch and match it to the cage nut, insert, tapped hole or other receiving thread.
How should 14mm length be checked?
Confirm the length datum, joint stack, required engagement and bottoming or rear clearance.
What should be checked for the broad head?
Confirm head diameter, height, bearing area, recess geometry and surrounding clearance.
Is an ISO certification included?
No certification is assumed from product appearance or naming. State any required standard, document and acceptance evidence in the RFQ.
Quality Control
Inspection scope should be agreed against the approved drawing, sample and purchase specification. For screws, the review focuses on dimensions, thread, drive fit, finish and assembly performance.
M5 diameter and 14mm length
Verify dimensions, length datum and tolerances against the approved drawing.
Pitch and mating-thread fit
Gauge the thread and trial the specified cage nut, insert or tapped hole.
Truss head and cross drive
Check head diameter, height, bearing face, recess and driver engagement.
Black finish
Inspect color, visible coverage and handling marks against the approved sample.
Assembly and packing
Verify seating, engagement, service access, pack count, labels and carton marks.
If salt-spray, torque, pull-out or another performance test is required, include the test method and acceptance criteria in the RFQ for feasibility review.
Packaging & Customization
JH Fix can review this screws product as an individual component or as part of a matched OEM hardware kit. MOQ starts at 10,000 pcs per confirmed specification; final feasibility and lead time depend on the approved product and pack design.
Bulk cartons
For production lines, distributors and scheduled replenishment.
Small poly bags
Counted packs for furniture assembly or project delivery.
Blister or box packs
Retail-ready formats subject to confirmed pack design.
Private labels
Barcode, label and instruction-sheet requirements can be reviewed.
Mixed hardware kits
The selected part and compatible fasteners can be quoted as an assembly kit.
Frequently Asked Questions
Is this M5 x 14mm screw self-tapping?
The photographed screw has a blunt fully threaded end. Self-tapping performance is not assumed.
Can M5 pitch or 14mm length be customized?
Yes. Provide the receiving thread and joint stack. MOQ starts at 10,000 pcs per confirmed specification.
Is the head a normal pan head?
The image shows a broader, lower truss or flange-style head. Confirm head diameter and height from the drawing.
Are stainless steel, zinc plating or ISO certification confirmed?
No. Material, finish, standard and any documents must be defined and verified for the order.
Can cage nuts or inserts be packed with the screws?
Yes. Confirm thread compatibility, finish, quantity per kit, label, inner pack and carton requirement.
What is needed to quote the M5 x 14mm black truss head machine screw?
Send pitch, mating thread, joint stack, finish, quantity and packaging. MOQ starts at 10,000 pcs per confirmed specification.
Related Products

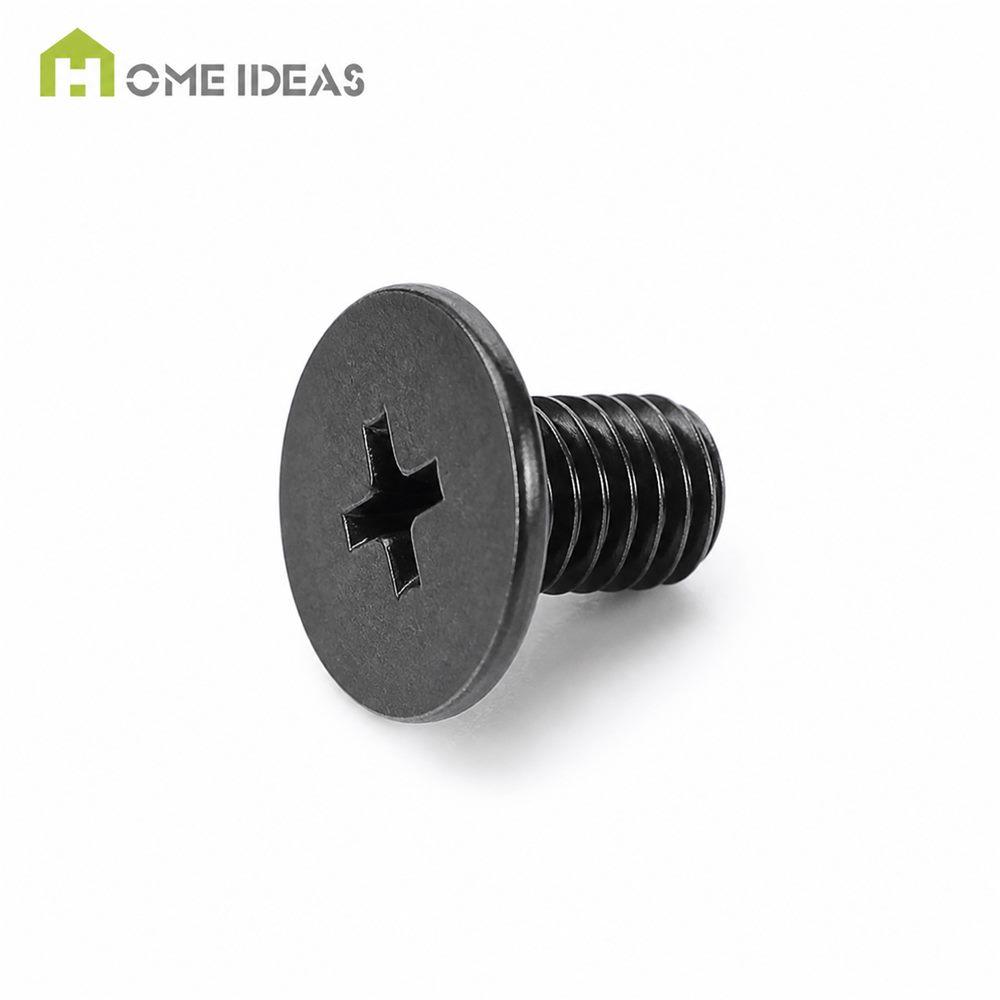

- Black Wide Truss Head Machine Screw
