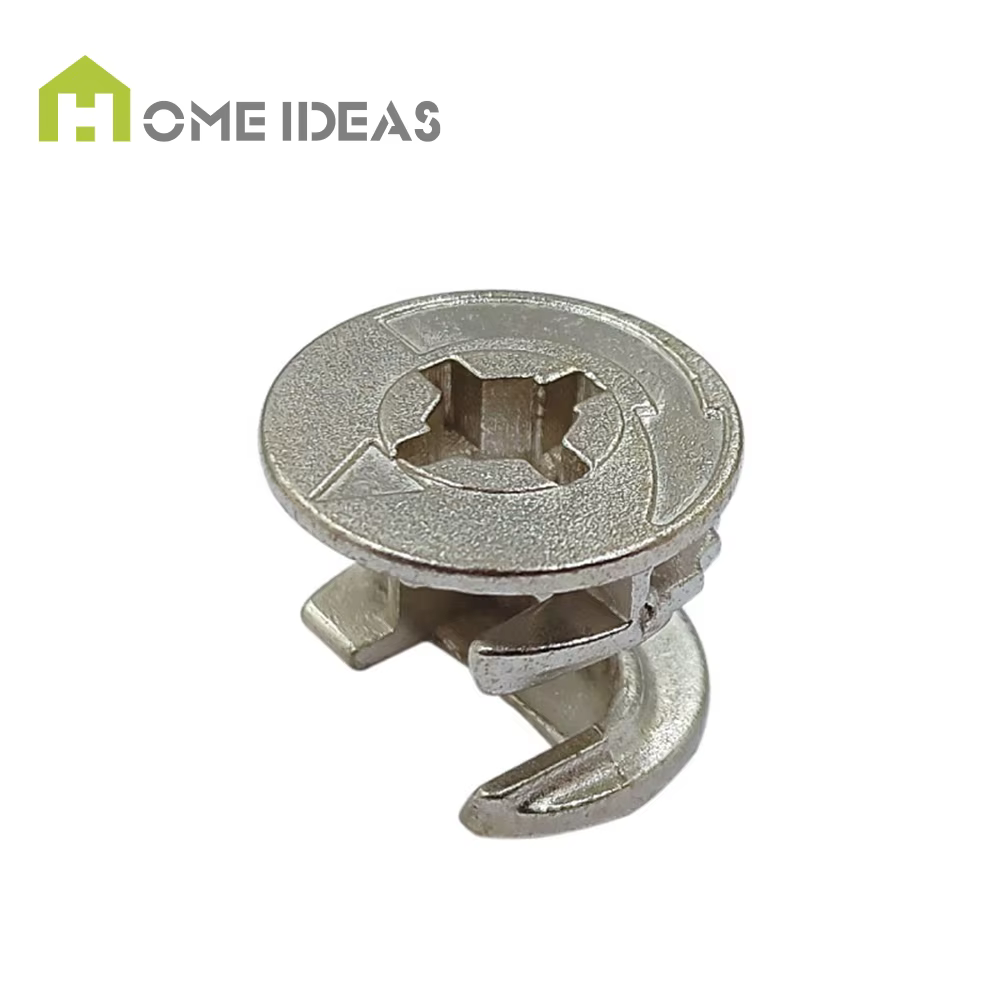

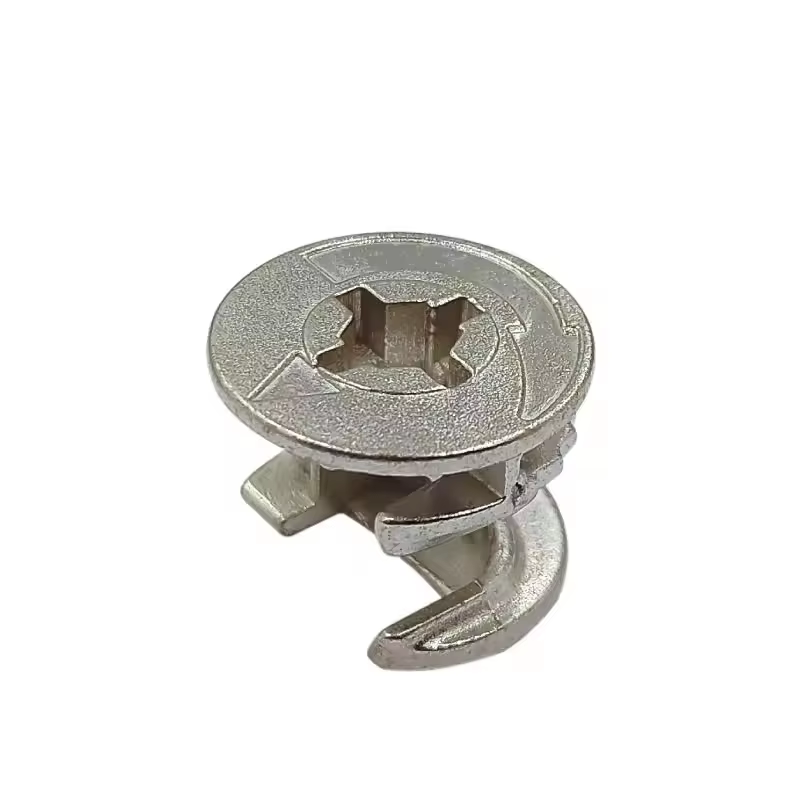

Silver Furniture Eccentric Cam Lock — Silver circular eccentric furniture cam lock bodies shown with a screwdriver recess and orientation marking. Final component geometry, panel and hole interfaces, mating parts, material, finish, quantity and packaging require confirmation.
Product Overview
| Photographed Configuration | Silver circular eccentric furniture cam lock bodies shown with a screwdriver recess and orientation marking. |
|---|---|
| Purchasing Position | Furniture connector or support assembly requiring panel, hole, mating-component and installation confirmation. |
| Order Boundary | Photographed colors, dimensions and quantities do not define the production order. |
| Quotation Basis | Approved drawing or sample, mating part or panel, installation conditions, quantity, packaging and acceptance criteria. |
Specifications & Custom Capability
Current Product Configuration
| Product Type | Silver Furniture Eccentric Cam Lock |
|---|---|
| Current Product Configuration | Silver circular eccentric furniture cam lock bodies shown with a screwdriver recess and orientation marking. |
| Primary Form | Round cam body with eccentric internal engagement geometry for a compatible furniture connector dowel. |
| Head / Interface | Confirm cam diameter and height, recess, orientation mark, dowel-head interface and release direction. |
| Thread / Mating Part | The cam body is not ordered by thread alone; confirm the compatible connector dowel or screw, panel drilling and engagement. |
| Current Appearance | Silver metallic appearance shown; confirm material, finish system and visual acceptance against an approved sample. |
| Material | Confirm according to drawing, sample or purchase specification. |
| Installation | Confirm panel thickness, face bore diameter and depth, edge-hole position, centerline, dowel head and tightening direction. |
| Dimensions & Tolerances | Confirm according to drawing, sample or purchase specification. |
Custom Manufacturing & Order Review
| Made-to-Drawing | Available for review with component drawings, panel-hole specification, joint section and mating-component details. |
|---|---|
| Made-to-Sample | Available for comparison with representative connectors, panels, mating parts and approved finish samples. |
| Component Geometry | Cam, pin, support body, sleeve, connector head, shank, shoulder and panel interfaces can be reviewed against the approved furniture joint. |
| Threaded Component Range | Threaded screws or dowels from M1 to M12 can be reviewed only where compatible with the confirmed furniture assembly, material, geometry and installation method. |
| Threaded Component Length | Threaded screws or dowels from 3 mm to 200 mm can be reviewed only where compatible with the confirmed panel, joint, engagement and manufacturing route. |
| Finish Options | Zinc plating, Ruspert coating, spray painting, electrophoretic coating, blackening, gold plating, silver plating and copper plating can be reviewed only where compatible with the confirmed base material, geometry, service environment and acceptance requirement. |
| Packaging & Private Label | Separated bags, kits or private-label packs can be reviewed with matched cam and dowel quantities and item identification. |
| MOQ | 10,000 pcs per confirmed specification |
| Samples | Request a representative sample with the proposed components, panels, holes, finish and packaging specification. |
Applications
| Knock-down cabinet panels | Coordinate face bore, edge drilling, dowel head and cam orientation with the panel drawing. |
|---|---|
| Wardrobe and shelving joints | Confirm panel thickness, hole centerline and clearance before the sample trial. |
| Replacement connector programs | Submit the existing cam, dowel and drilled panel for compatibility review. |
| Furniture hardware kits | Match cam and dowel quantities under controlled count, label and compartment layout. |
Buyer Guide
| Which panel dimensions control fit? | Face-bore diameter and depth, edge-hole diameter, centerline, panel thickness and dowel position work together. |
|---|---|
| Can the load rating be inferred from the image? | No. Define the panel, joint geometry, mating components and test method. |
| How is the mating dowel selected? | Confirm dowel head geometry, shank or thread, installed projection and cam engagement. |
| What should an assembly sample include? | Use production-representative panels, drilling and mating components. |
Quality Control
| Cam geometry | Inspect diameter, height, recess, eccentric cavity and orientation marking. |
|---|---|
| Panel fit | Verify insertion, seating and rotation in a representative face bore. |
| Mating engagement | Check dowel capture, tightening direction, closing travel and release. |
| Kit and pack audit | Verify matched component count, item identity, label and compartment layout. |
Packaging & Customization
| Packaging Format | Separated bags, kits or private-label packs can be reviewed with matched cam and dowel quantities and item identification. |
|---|---|
| Identification | Use approved item codes, quantities, labels, barcodes and carton marks. |
| Component Protection | Prevent mixed parts, movement and visible-surface damage through the confirmed pack design. |
| Private Label | Submit approved artwork, language, barcode data and legal marking requirements before production. |
Frequently Asked Questions
| Is the order limited to the photographed furniture component? | No. The gallery records the current photographed configuration. Final component geometry, panel and hole interfaces, mating parts, material, finish, quantity and packaging require an approved drawing or sample. |
|---|---|
| Can the furniture connector or support geometry be customized? | Component geometry can be reviewed against the confirmed panel, hole layout, mating parts and installation method. M1 to M12 threads and 3 mm to 200 mm lengths apply only to compatible screw or dowel components after technical review. |
| Which panel dimensions control fit? | Face-bore diameter and depth, edge-hole diameter, centerline, panel thickness and dowel position work together. |
| Which finishes can be reviewed for metallic components? | Zinc plating, Ruspert coating, spray painting, electrophoretic coating, blackening, gold plating, silver plating and copper plating can be reviewed only where compatible with the confirmed base material, geometry, service environment and acceptance requirement. |
| Can the package and label be customized? | Separated bags, kits or private-label packs can be reviewed with matched cam and dowel quantities and item identification. |
| What is required for quotation? | Send the component and panel drawings or samples, hole specification, mating parts, installation method, material and finish requirement, quantity and packaging artwork. MOQ starts at 10,000 pcs per confirmed specification. |
Need a Custom Quote?
Send a drawing or sample and the confirmed assembly requirements. JH Fix will review manufacturing compatibility, sample scope and quotation details.
| RFQ 1 | Cam drawing or approved sample |
|---|---|
| RFQ 2 | Cam diameter, height, recess and orientation |
| RFQ 3 | Panel thickness and face-bore specification |
| RFQ 4 | Edge hole, centerline and mating dowel geometry |
| RFQ 5 | Material, finish and acceptance criteria |
| RFQ 6 | Kit quantity, component ratio, label and packaging |
MOQ: 10,000 pcs per confirmed specification
