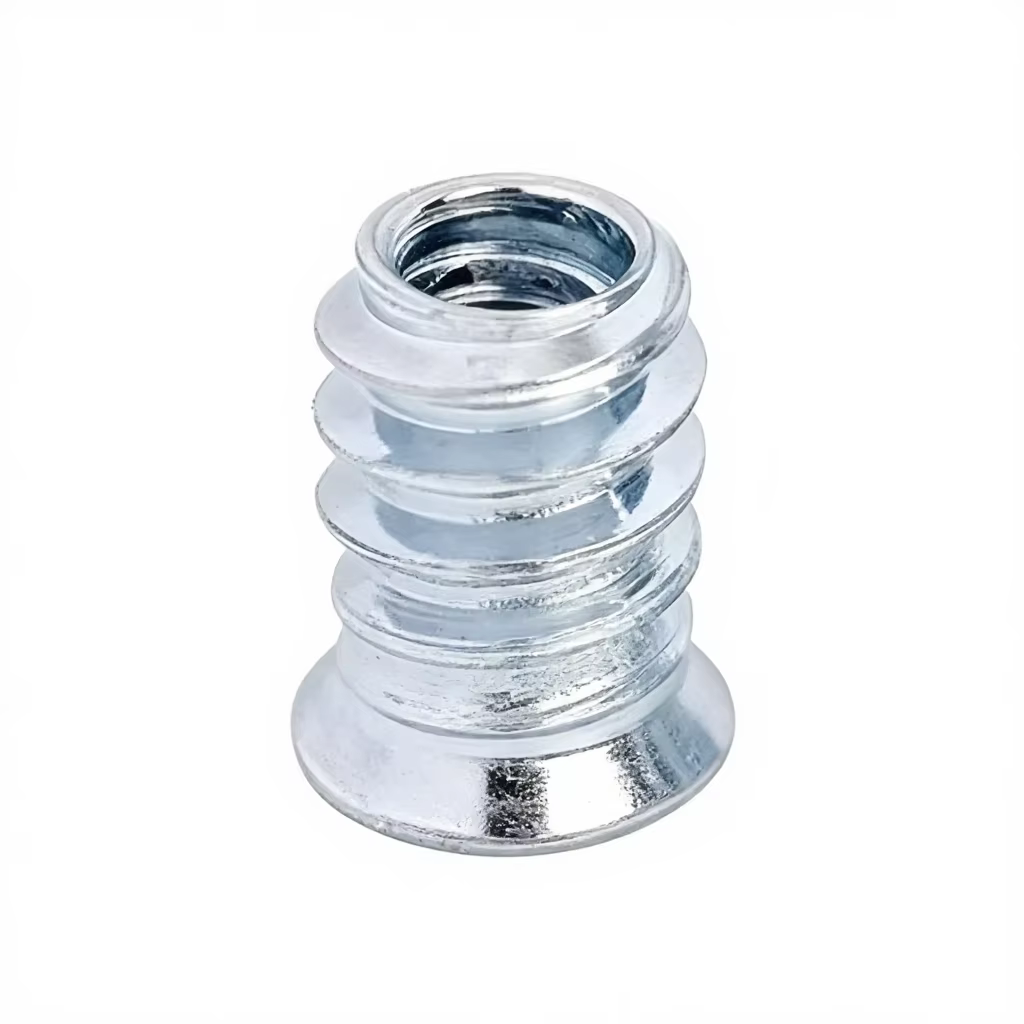

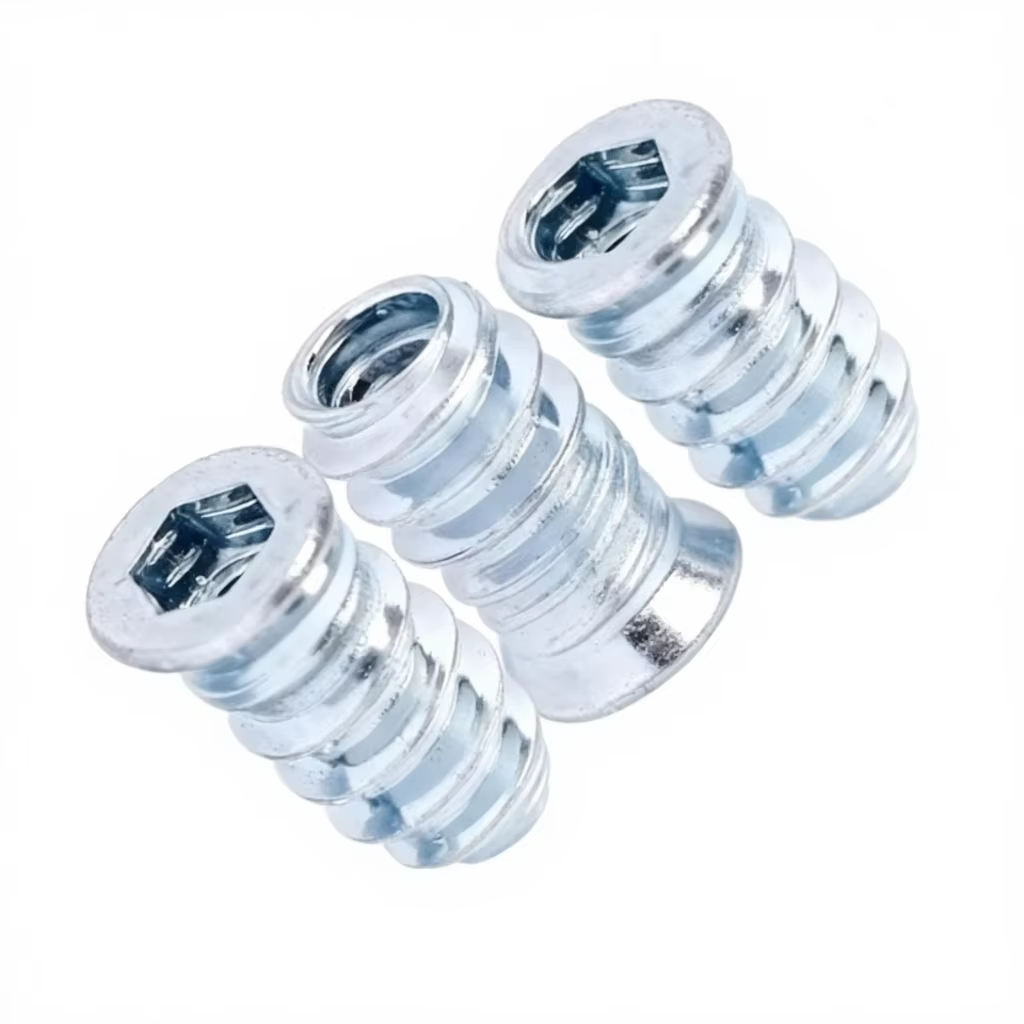

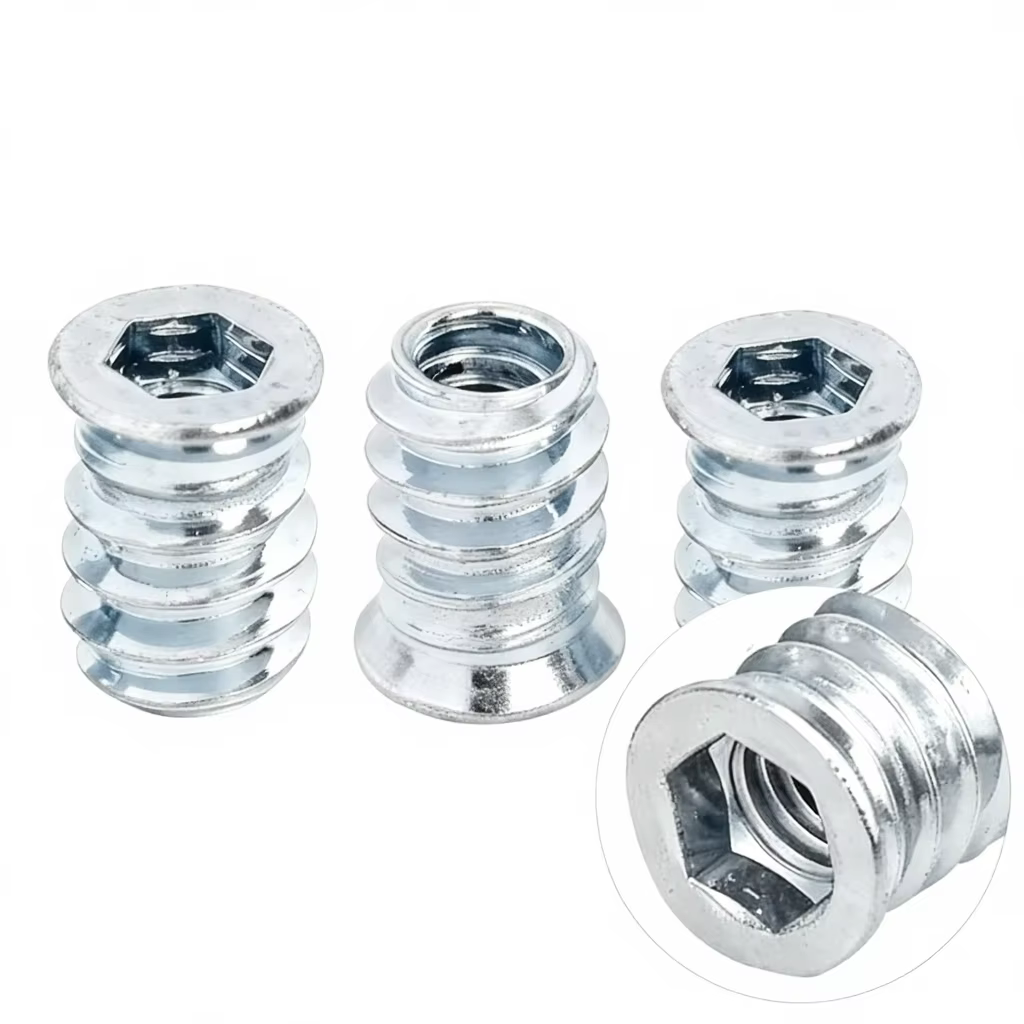

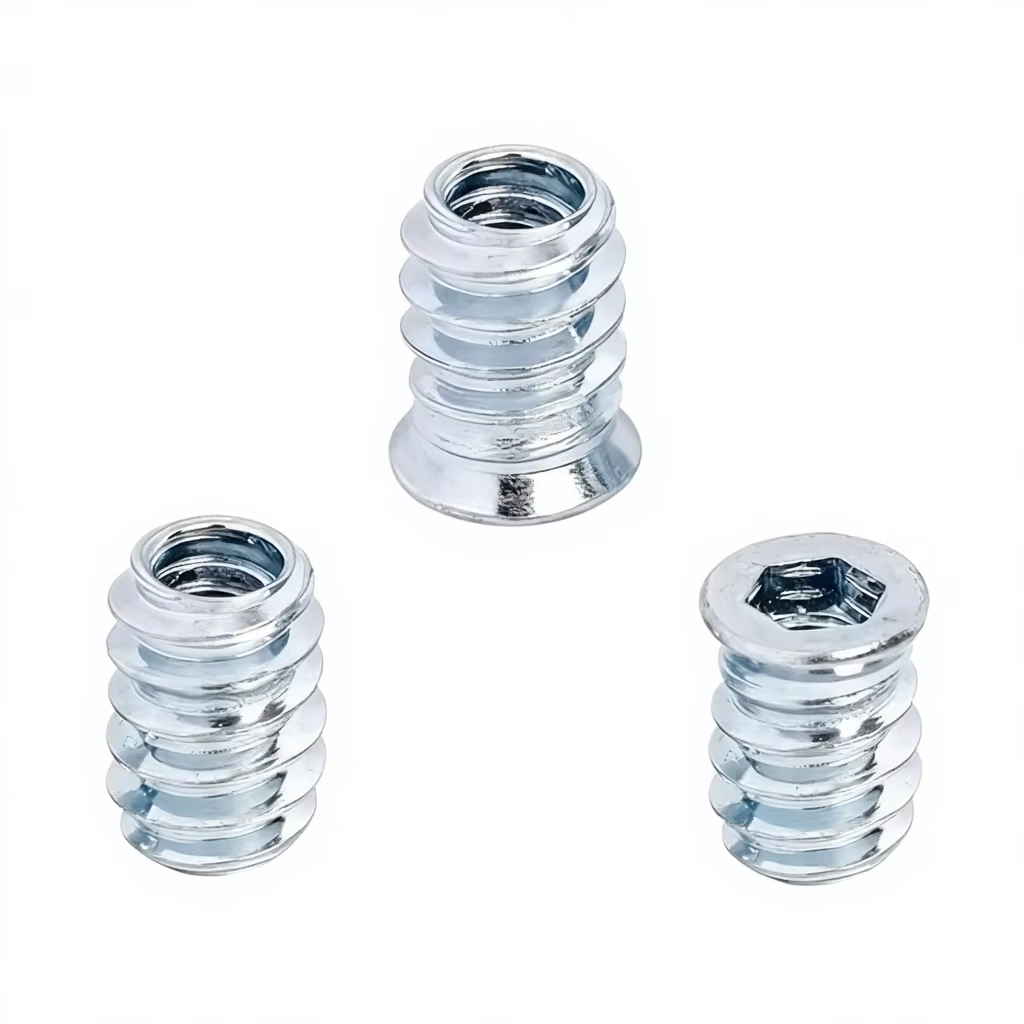

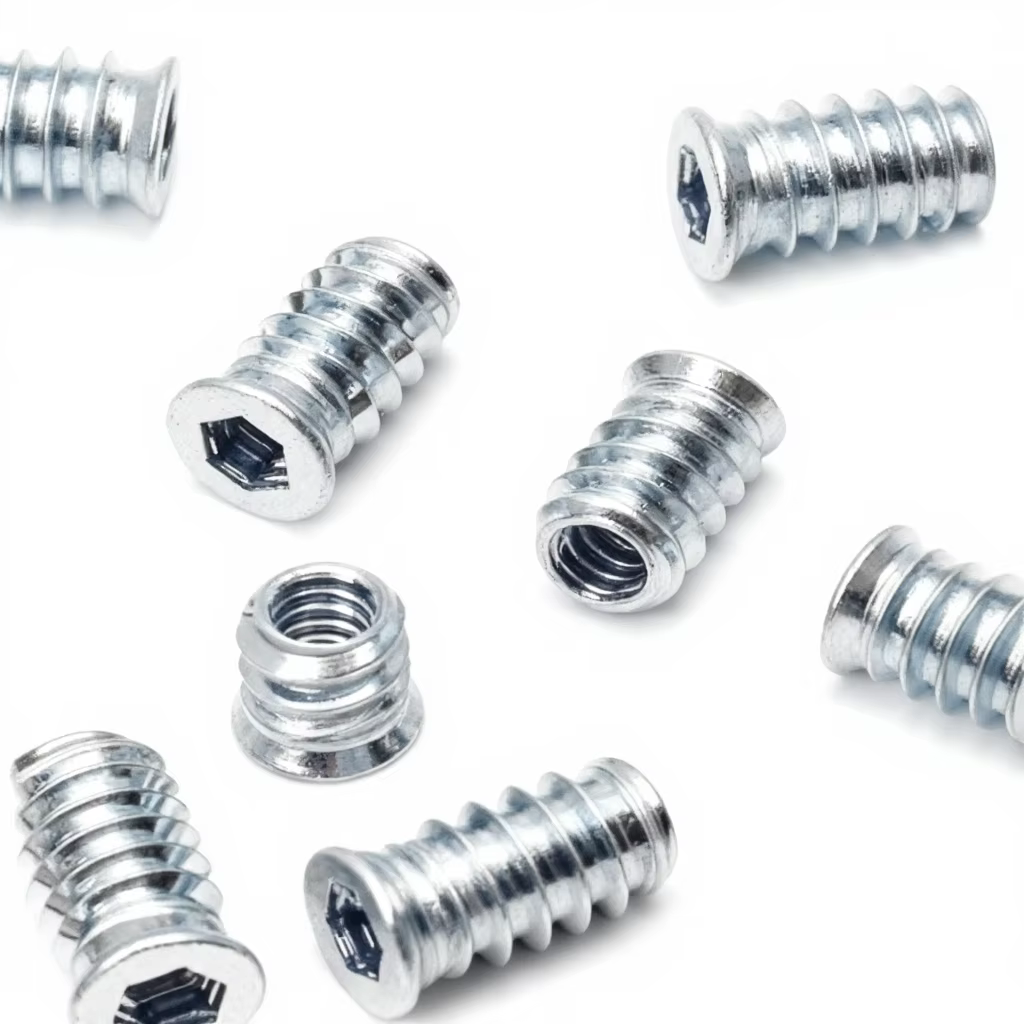

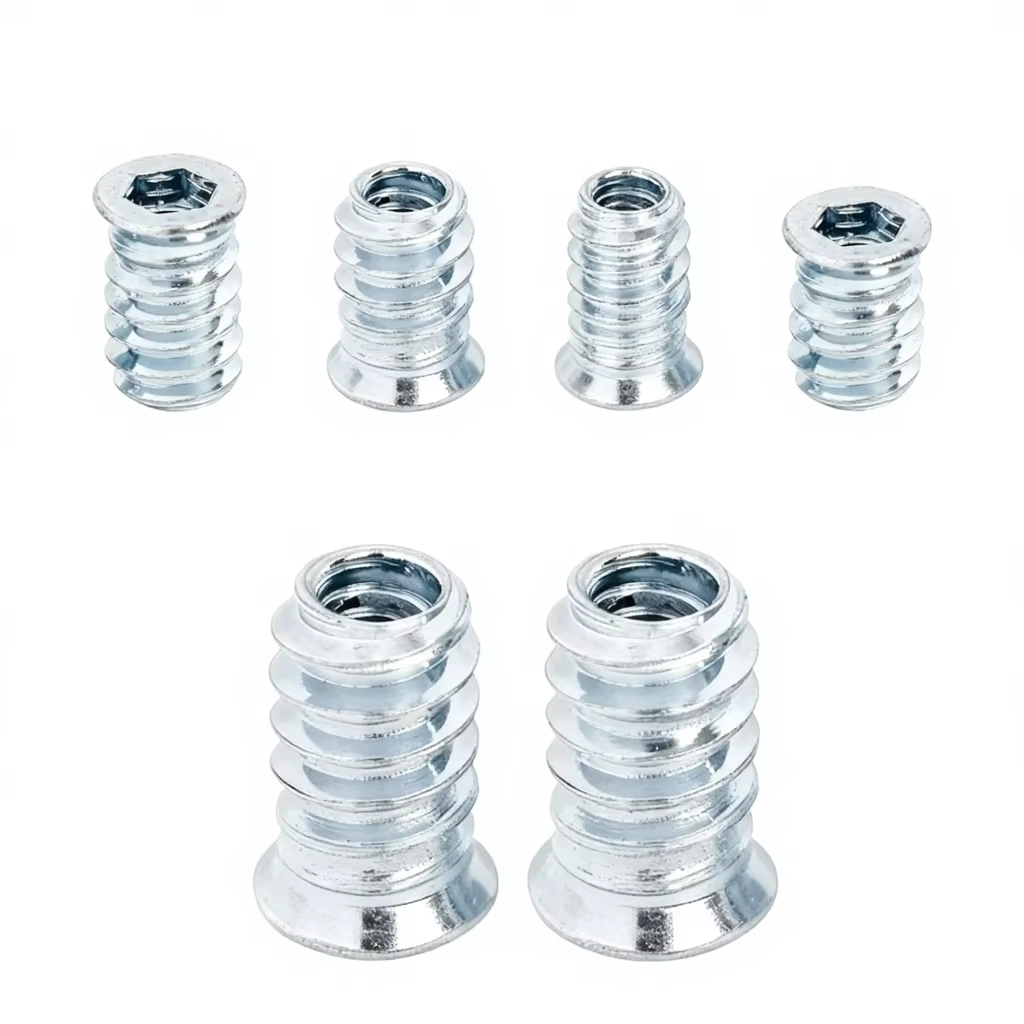

Round-Body Threaded Insert Nut — Silver-colored insert nuts shown with cylindrical coarse external ribs, flanged entry faces, internal hex installation drives and internal threads. Final nut geometry, internal thread, seating, mating part, material, finish and packaging require confirmation.
Product Overview
| Photographed Configuration | Silver-colored insert nuts shown with cylindrical coarse external ribs, flanged entry faces, internal hex installation drives and internal threads. |
|---|---|
| Purchasing Position | Custom nut requiring geometry, internal thread, seating, mating-part and installation confirmation. |
| Order Boundary | Photographed colors, dimensions and quantities do not define the production order. |
| Quotation Basis | Approved drawing or sample, mating part or panel, installation conditions, quantity, packaging and acceptance criteria. |
Specifications & Custom Capability
Current Product Configuration
| Product Type | Round-Body Threaded Insert Nut |
|---|---|
| Current Product Configuration | Silver-colored insert nuts shown with cylindrical coarse external ribs, flanged entry faces, internal hex installation drives and internal threads. |
| Primary Form | Drive-in threaded furniture insert intended to create a reusable internal machine thread in a confirmed wood or engineered panel hole. |
| Head / Interface | Confirm flange diameter and thickness, body outside profile and length, external rib form, internal hex drive, entry face and seating condition. |
| Thread / Mating Part | Confirm internal machine-thread diameter, pitch and class, engagement length, mating bolt, body bore and required thread fit. |
| Current Appearance | Bright silver-colored surfaces are shown; confirm base material, finish, corrosion requirement and approved sample. |
| Material | Confirm according to drawing, sample or purchase specification. |
| Installation | Confirm panel material and thickness, pilot-hole diameter and depth, edge distance, hex tool, insertion torque or method, mating bolt and buyer-specified test. |
| Dimensions & Tolerances | Confirm according to drawing, sample or purchase specification. |
Custom Manufacturing & Order Review
| Made-to-Drawing | Available for review with nut geometry, internal thread, seating interface, mating-bolt or axle and installation specification. |
|---|---|
| Made-to-Sample | Available for comparison with representative nuts, mating parts, workpieces and approved finish samples. |
| Custom Geometry | Flange, body, prongs or tool interface and internal thread can be reviewed against the approved assembly. |
| Material & Finish Review | Material and finish options require confirmation against thread, seating, installation and service requirements. |
| Packaging & Private Label | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after part identity, quantity, protection, labels and artwork are approved. |
| MOQ | 10,000 pcs per confirmed specification |
| Samples | Request a representative sample with the proposed panel, pilot hole, driver and mating bolt. |
Applications
| Knock-down furniture joints | Match insert, panel hole and mating bolt to the approved joint. |
|---|---|
| Adjustable furniture feet | Confirm thread, seating, panel section and service direction. |
| Cabinet hardware mounting | Coordinate flange, body, hole and bolt engagement. |
| OEM insert-and-bolt packs | Control thread pairing, component ratio, count and labels. |
Buyer Guide
| Which panel-hole data are required? | Provide panel material and density, thickness, hole diameter and depth, edge distance and tolerances. |
|---|---|
| How is the mating bolt selected? | Confirm bolt thread, class, engagement, joint stack and installation method. |
| Can the external ribs be chosen from the image? | No. Approve the body and rib geometry with a drawing, sample and representative panel trial. |
| How is insertion approved? | Use production-representative panels for driving, seating, thread fit and buyer-specified evaluation. |
Quality Control
| Flange and body | Inspect diameters, length, seating face, ribs, concentricity and burrs. |
|---|---|
| Internal thread and drive | Check thread with the confirmed mating bolt and verify hex-drive geometry. |
| Panel installation trial | Verify hole preparation, insertion, seating, retention and buyer-specified test. |
| Finish and pack audit | Confirm surface, thread variant, count, labels and protection. |
Packaging & Customization
| Packaging Format | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after part identity, quantity, protection, labels and artwork are approved. |
|---|---|
| Identification | Use approved item codes, quantities, labels, barcodes and carton marks. |
| Component Protection | Prevent mixed parts, movement and visible-surface damage through the confirmed pack design. |
| Private Label | Submit approved artwork, language, barcode data and legal marking requirements before production. |
Frequently Asked Questions
| Is the order limited to the photographed nut? | No. The gallery records the current photographed configuration. Final flange, body, prongs or tool interface, internal thread, material, finish, quantity and packaging require an approved drawing or sample. |
|---|---|
| Can the thread and nut geometry be customized? | Internal thread, flange, body and applicable prong or tool geometry can be reviewed against the confirmed mating part, workpiece and installation method. |
| Which panel-hole data are required? | Provide panel material and density, thickness, hole diameter and depth, edge distance and tolerances. |
| How is the mating bolt selected? | Confirm bolt thread, class, engagement, joint stack and installation method. |
| Can the package and label be customized? | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after part identity, quantity, protection, labels and artwork are approved. |
| What is required for quotation? | Send the insert drawing or sample, panel and pilot-hole specification, mating bolt, installation method, material and finish requirement, quantity and packaging artwork. MOQ starts at 10,000 pcs per confirmed specification. |
Need a Custom Quote?
Send a drawing or sample and the confirmed assembly requirements. JH Fix will review manufacturing compatibility, sample scope and quotation details.
| RFQ 1 | Insert drawing or approved sample |
|---|---|
| RFQ 2 | Flange, body, ribs, hex drive and internal thread |
| RFQ 3 | Panel material, thickness and pilot hole |
| RFQ 4 | Mating bolt and joint section |
| RFQ 5 | Material, finish and corrosion requirement |
| RFQ 6 | Component ratio, quantity, labels and packaging |
MOQ: 10,000 pcs per confirmed specification
