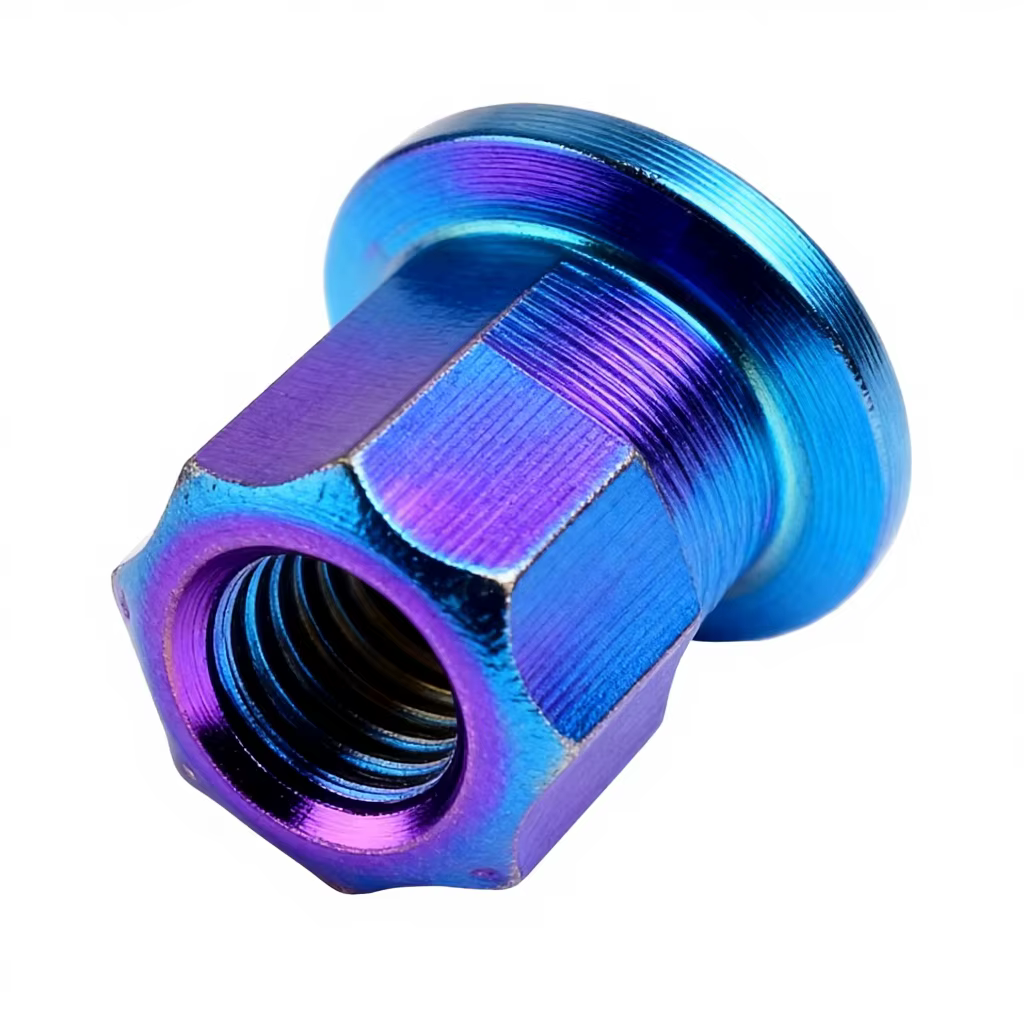

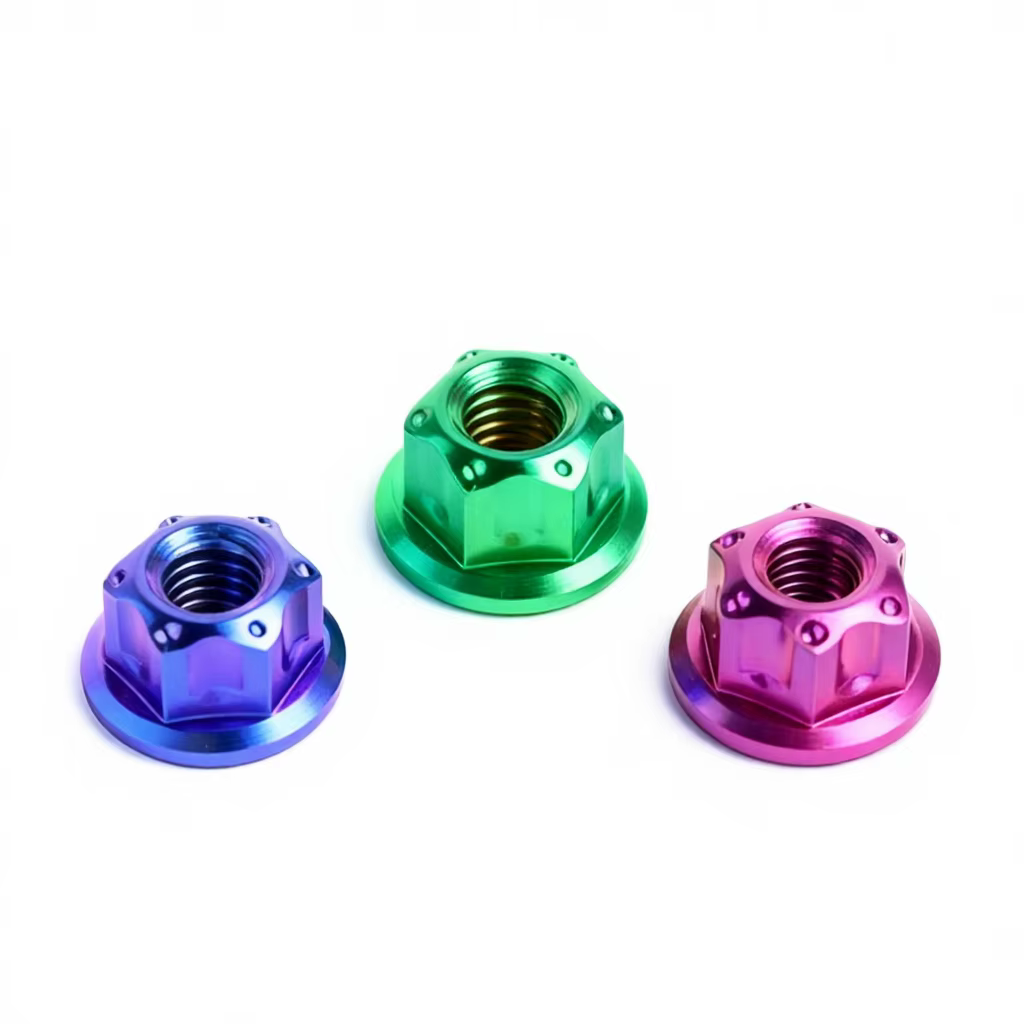

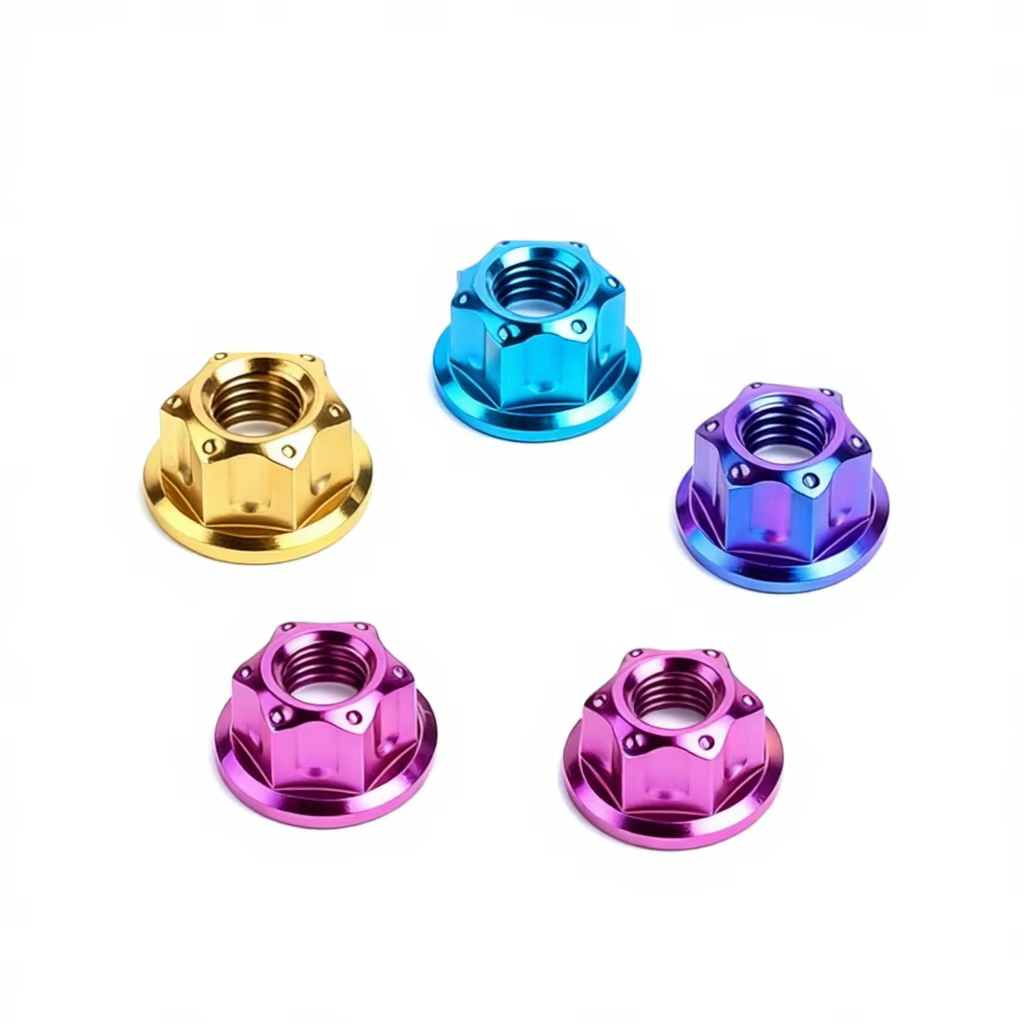

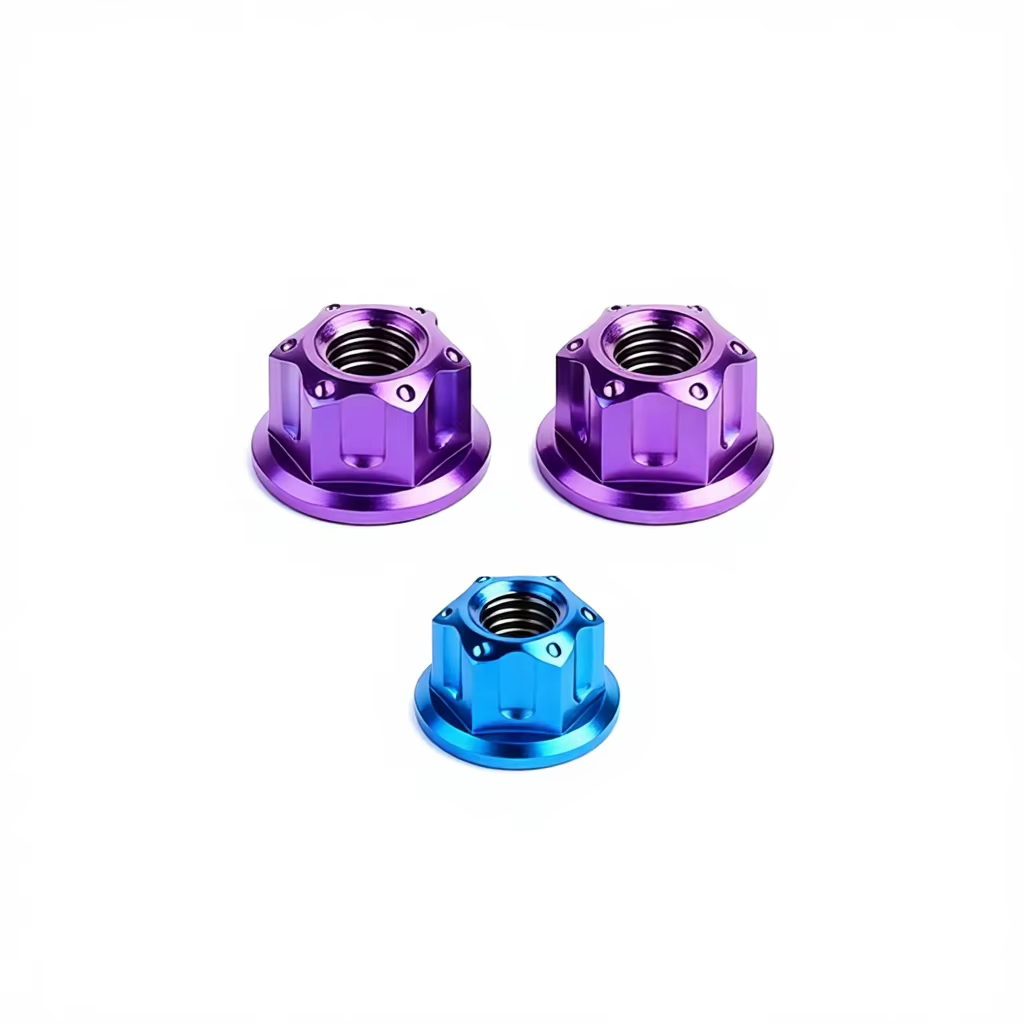

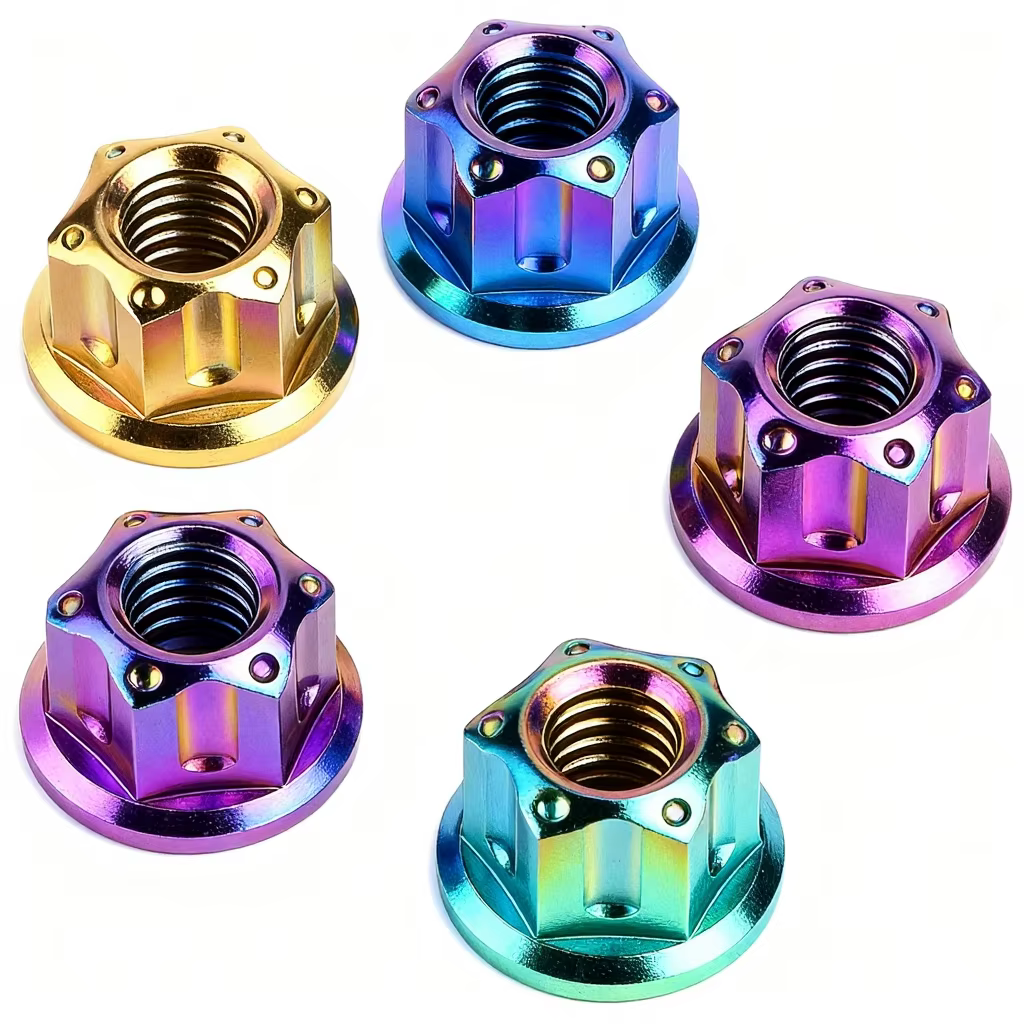

Multicolor Flanged Axle Nut — Flanged internally threaded nuts shown with shaped outer faces and blue, purple, gold-toned, green and mixed-color metallic appearances. Final nut geometry, internal thread, seating, mating part, material, finish and packaging require confirmation.
Product Overview
| Photographed Configuration | Flanged internally threaded nuts shown with shaped outer faces and blue, purple, gold-toned, green and mixed-color metallic appearances. |
|---|---|
| Purchasing Position | Custom nut requiring geometry, internal thread, seating, mating-part and installation confirmation. |
| Order Boundary | Photographed colors, dimensions and quantities do not define the production order. |
| Quotation Basis | Approved drawing or sample, mating part or panel, installation conditions, quantity, packaging and acceptance criteria. |
Specifications & Custom Capability
Current Product Configuration
| Product Type | Multicolor Flanged Axle Nut |
|---|---|
| Current Product Configuration | Flanged internally threaded nuts shown with shaped outer faces and blue, purple, gold-toned, green and mixed-color metallic appearances. |
| Primary Form | Internally threaded axle nut with an integral flange and shaped wrenching body. |
| Head / Interface | Confirm flange diameter and thickness, body across-flats or lobe geometry, overall height, seating face and tool access. |
| Thread / Mating Part | Confirm internal thread diameter, pitch, class, usable depth, mating axle or bolt, engagement and locking method. |
| Current Appearance | Several bright multicolor metallic appearances are shown; confirm base material, finish process, color range and service environment. |
| Material | Confirm according to drawing, sample or purchase specification. |
| Installation | Confirm mating axle or bolt, seating surface, washer or spacer, tool, tightening procedure and buyer acceptance method. |
| Dimensions & Tolerances | Confirm according to drawing, sample or purchase specification. |
Custom Manufacturing & Order Review
| Made-to-Drawing | Available for review with nut geometry, internal thread, seating interface, mating-bolt or axle and installation specification. |
|---|---|
| Made-to-Sample | Available for comparison with representative nuts, mating parts, workpieces and approved finish samples. |
| Custom Geometry | Flange, body, prongs or tool interface and internal thread can be reviewed against the approved assembly. |
| Material & Finish Review | Material and finish options require confirmation against thread, seating, installation and service requirements. |
| Packaging & Private Label | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after component identity, quantity, protection, labels and artwork are approved. |
| MOQ | 10,000 pcs per confirmed specification |
| Samples | Request a representative sample with the proposed panel, pilot hole, driver and mating bolt. |
Applications
| Motorcycle and bicycle axle assemblies | Match thread, flange, seating and tool access to the actual axle. |
|---|---|
| Machinery adjustment points | Confirm engagement, seating and specified tightening method. |
| Color-coded hardware programs | Approve each finish sample and item code separately. |
| OEM fastener packs | Control variant, thread, count, label and surface protection. |
Buyer Guide
| Which dimensions control fit? | Specify thread, flange, body geometry, overall height and seating face. |
|---|---|
| Can the photographed color identify the finish? | No. Confirm the finish process, approved color sample and service condition. |
| What mating part is required for review? | Provide the production axle or bolt and its complete thread and seating details. |
| Can locking performance be inferred from the shape? | No. Define the required locking method and buyer test. |
Quality Control
| Body and flange | Inspect geometry, seating face, tool interface, edges and visible surface. |
|---|---|
| Internal thread | Check profile, pitch, depth, damage and mating fit. |
| Assembly trial | Verify seating, tool access, engagement and buyer-specified tightening test. |
| Finish and pack audit | Confirm approved color, item identity, count, label and protection. |
Packaging & Customization
| Packaging Format | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after component identity, quantity, protection, labels and artwork are approved. |
|---|---|
| Identification | Use approved item codes, quantities, labels, barcodes and carton marks. |
| Component Protection | Prevent mixed parts, movement and visible-surface damage through the confirmed pack design. |
| Private Label | Submit approved artwork, language, barcode data and legal marking requirements before production. |
Frequently Asked Questions
| Is the order limited to the photographed nut? | No. The gallery records the current photographed configuration. Final flange, body, prongs or tool interface, internal thread, material, finish, quantity and packaging require an approved drawing or sample. |
|---|---|
| Can the thread and nut geometry be customized? | Internal thread, flange, body and applicable prong or tool geometry can be reviewed against the confirmed mating part, workpiece and installation method. |
| Which dimensions control fit? | Specify thread, flange, body geometry, overall height and seating face. |
| Can the photographed color identify the finish? | No. Confirm the finish process, approved color sample and service condition. |
| Can the package and label be customized? | Bulk, counted bags, compartment packs or private-label cartons can be reviewed after component identity, quantity, protection, labels and artwork are approved. |
| What is required for quotation? | Send the insert drawing or sample, panel and pilot-hole specification, mating bolt, installation method, material and finish requirement, quantity and packaging artwork. MOQ starts at 10,000 pcs per confirmed specification. |
Need a Custom Quote?
Send a drawing or sample and the confirmed assembly requirements. JH Fix will review manufacturing compatibility, sample scope and quotation details.
| RFQ 1 | Nut drawing or approved samples |
|---|---|
| RFQ 2 | Internal thread and mating axle or bolt |
| RFQ 3 | Flange, body and seating geometry |
| RFQ 4 | Tool access and tightening method |
| RFQ 5 | Material, finish, color and service condition |
| RFQ 6 | Variant quantities, labels and packaging |
MOQ: 10,000 pcs per confirmed specification
